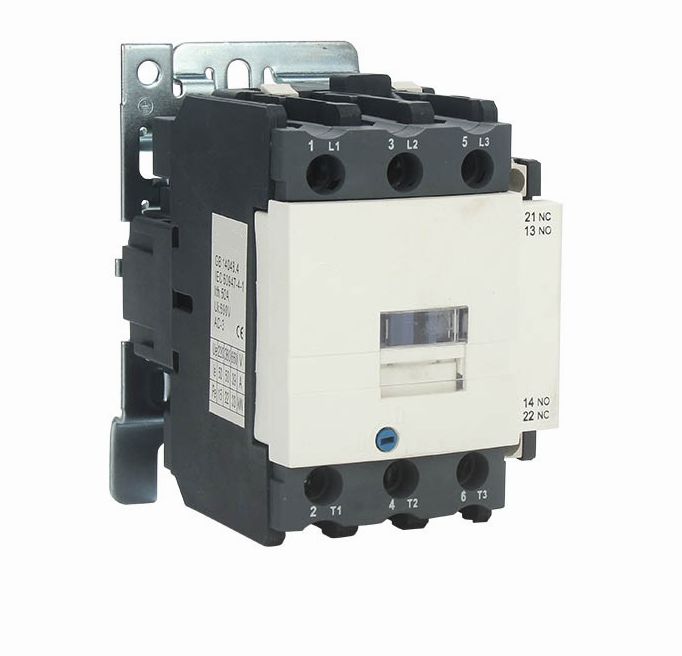

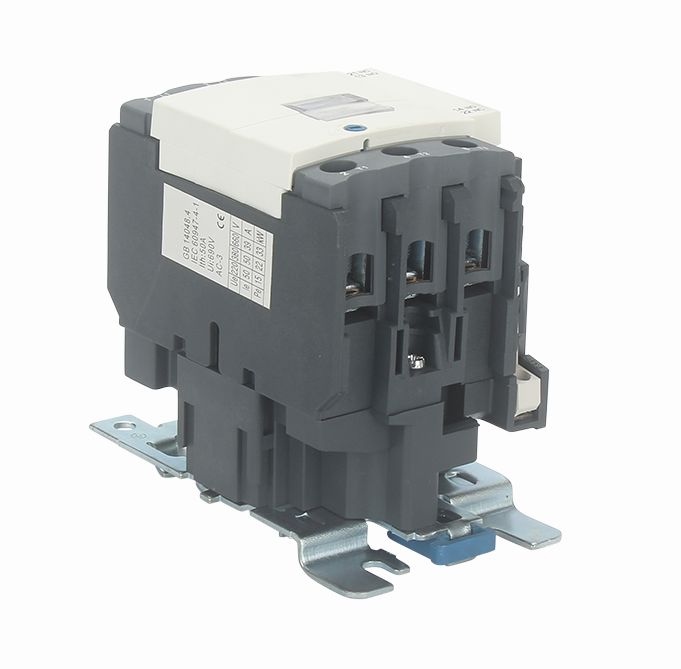

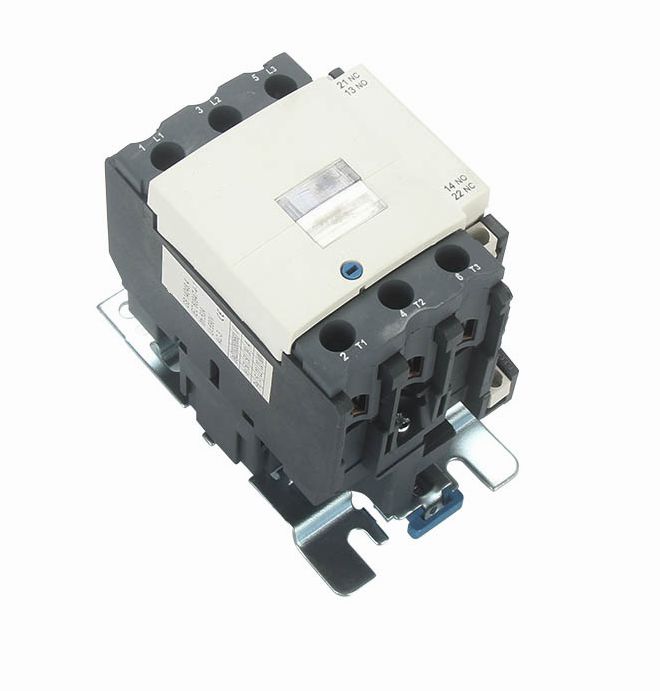

IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor

Brand Name : YOKG

Model Number : SC1-40～65， SC1-80～95

Certification : CE,TUV,CB

Place of Origin : Wenzhou, China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 100000pcs per Month

Delivery Time : 15days or Depends on ordering QTYS

Packaging Details : Each unit be packed in one individual inner box

Rated heating current : 50A,60A,80A,110A

Rated insulation voltage : 220V,400V,690V

Auxiliary contact : 1NO+1NC

Protection degree : IP20

Electricity type : AC

Number of poles : 3

Phase : 3

Main Circuit Rating Voltage : Up to 6902V

Contact Now

IEC60947 Telemecanique Contactor SC1-40~65 SC180~95 AC Magnetic Contactor

General:

Installation: Din rail / screw installation

Certification: CE,CB,TUV

Standard: IEC 60947-1, IEC 60947-4-1

Ambient temperature: -5℃~+40℃

Wiring capacity(mm): 1.5-35

Frequency: 50/60Hz

Altitude: ≤ 2000m

Pollution degree: Class 3

Installation category: III

Protection degree: IP20

Features: With dust cover design, contactor have characteristic of better safety, reliability and it also can extended service life.

They are in small volume, light weight, less power loss, long life and safe and reliability. Can be installed with auxiliary contacts block, time relay and current-limited contacts block, and thermal relay.

Model and Implication:

IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor

Main parameters and Technical Performance:

Type SC1-40 SC1-50 SC1-65 SC1-80 SC1-95
Rated heating current (A) 50 60 80 110 110
Rated insulation voltage (V) 690
Rated impact withstand voltage (KV) 6
Rated making capacity 10le
Rated breaking capacity 8le
Poles 3
Auxiliary contact 1NO + 1NC
Short-time withstand current(A) 10S 320 400 520 640 760
AC-3
Rated working current(A)		 220V/230V 40 50 65 80 95
380V/400V 40 50 65 80 95
660V/690V 34 39 42 49 49
AC-3 capacity of phase 3
squirrel-cage motor (AC-3) KW		 220V/230V 11 15 18.5 22 25
380V/400V 18.5 22 30 37 45
660V/690V 30 33 37 45 45
Operation frequency (times/h) Electrical life 600
Mechanical life 3600
AC-3 Electrical life (10000/times) 80 60 60 60 60
Mechanical life (10000/times) 800 800 800 600 600
Equipped fuse type RT16-63 RT16-80 RT16-80 RT16-100 RT16-125
Rated control supply voltage Us(V) 50/60Hz 12～480
Operation range Pull-in (85%～110%)Us +40℃
Releasing (20%～75%)Us -5℃
Ac coil average power(VA) Start 200
Keeping 20
Power efficiency class class 3
Thermal loss(W) 6 ～10
Actuation time(ms) Close 20 ～ 25 20 ～ 35
Break 8 ～ 15 8 ～ 20
Main circuit wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 2.5～25 2.5～25 2.5～25 4～50 4～50
2 sticks 2.5～16 2.5～16 2.5～16 4～25 4～25
flexible wire with cold
pressing terminal (㎟)		 1 stick 2.5～25 2.5～25 2.5～25 4～50 4～50
2 sticks 2.5～10 2.5～10 2.5～10 4～16 4～16
Hard wire (㎟) 1 stick 2.5～25 2.5～25 2.5～25 4～50 4～50
2 sticks 2.5～16 2.5～16 2.5～16 4～25 4～25
Fastening screw size M8 M10
Tightening fastening torque (N.m) 3.5 4
Control loop wiring flexible wire without cold
pressing terminal (㎟)		 1 stick 1～4 1～4 1～4 1～4 1～4
2 sticks 1～4 1～4 1～4 1～4 1～4
flexible wire with cold
pressing terminal (㎟)		 1 stick 1～4 1～4 1～4 1～4 1～4
2 sticks 1～2.5 1～2.5 1～2.5 1～2.5 1～2.5
Hard wire (㎟) 1 stick 1～4 1～4 1～4 1～4 1～4
2 sticks 1～4 1～4 1～4 1～4 1～4
Fastening screw size M3.5
Tightening fastening torque (N.m) 0.8

Appearance and Installation Dimension:

IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor

Installation dimension:

Type A max B max C max a b ∅
SC1-40～65 75 127 119 40 100/110 6.5
SC1-80～95 85 127 130 40 100/110 6.5


IEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic ContactorIEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic ContactorIEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic ContactorIEC60947 Telemecanique Magnetic Contactor SC1-40 - 65 SC180 - 95 AC Magnetic Contactor
