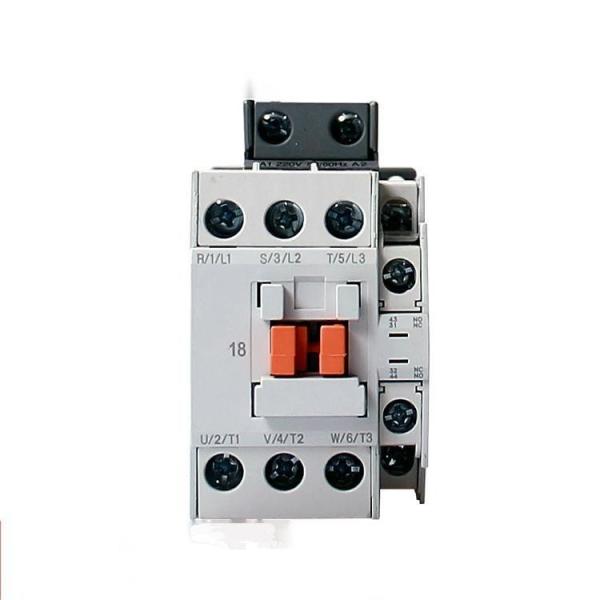

40A 380V GC-9 1NC+1NO Electrical Magnetic Silver Point AC Contactor
Product descriptions:
1. GC Series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50HZ or 60HZ, rated current up to 135A, for making frequently starting & controlling the AC motor.
2. 25-135A GC AC Contactor can be Combined with the auxiliary contact block, thermal relay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
3. With the thermal relay, it is combined into the electromagnetic starter.
Main parameters and Technical Performance:
| Type | GC-9 | GC-12 | GC-18 | GC-22 |
| Rated heating current (A) | 25 | 25 | 40 | 40 |
| Rated insulation voltage (V) | 690 |
| Rated impact withstand voltage (KV) | 6 |
| Rated making capacity | 10le |
| Rated breaking capacity | 8le |
| Poles | 3 |
| Auxiliary contact | 1NC+1NO |
| Short-time withstand current(A) | 10S | 72 | 96 | 144 | 196 |
| IEC-60947 | AC1 Load | 25 | 25 | 40 | 40 |
AC3
Load
power | 200～240V | 2.5KW | 3.5KW | 4.5KW | 5.5KW |
| 380～440V | 4KW | 5.5KW | 7.5KW | 11KW |
| 500～550V | 4KW | 7.5KW | 7.5KW | 15KW |
| 690V | 4KW | 7.5KW | 7.5KW | 15KW |
AC3
Load
current | 200～240V | 11A | 13A | 18A | 22A |
| 380～440V | 9A | 12A | 18A | 22A |
| 500～550V | 7A | 12A | 13A | 18A |
| 690V | 5A | 9A | 9A | 32A |
| UL508 | Continuous current | 20A | 25A | 30A | 32A |
single-phase
machine | 115V | 0.5HP | 0.5HP | 1HP | 2HP |
| 230V | 1HP | 2HP | 3HP | 3HP |
Three-phase
machine | 200V | 2HP | 3HP | 5HP | 7.5HP |
| 230V | 2HP | 3HP | 5HP | 7.5HP |
| 460V | 5HP | 7.5HP | 10HP | 10HP |
| 575V | 7.5HP | 10HP | 15HP | 15HP |
| Operation frequency (times/h) | Electrical life | 1200 |
| Mechanical life | 3600 |
| AC-3 Electrical life (10000/times) | 100 | 100 | 100 | 100 |
| Mechanical life (10000/times) | 1000 | 1000 | 1000 | 1000
|

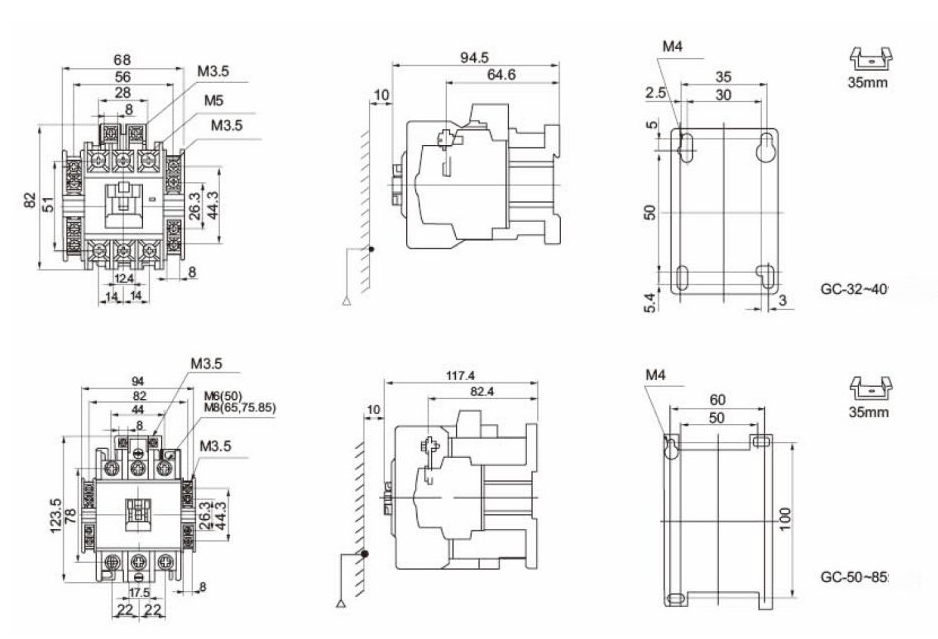

Installation dimension:
Packing and Delivery:
FAQ:
1. Could I have prices of your products?
Well welcome. Please feel free to send us any inquiry. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes, we can accept OEM and ODM
3. What's the lead time for regular order?
7-15 days for order quantity less than 2000pcs. For more quantity, we can negotiate about it.
4. Do you inspect the finished products?
Our products 100% self-inspection and testing before packing.
5. How about payment terms?
30% deposit, the rest payment balance against B/L copy.
Why Choose Us:
--------------------------------------------------------------------
a. Reply your inquire in 24 working hour.
b. Technical and professional guidance.
c. Best quality and best price.
We maintain excellent products and strive for 100% customer satisfaction. A good feedback is very important, we welcome for your kind suggestion or feedback on our goods and service.
