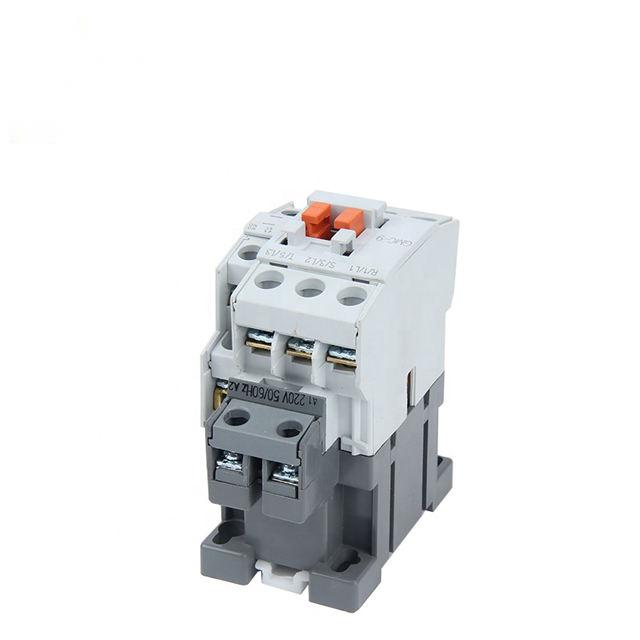

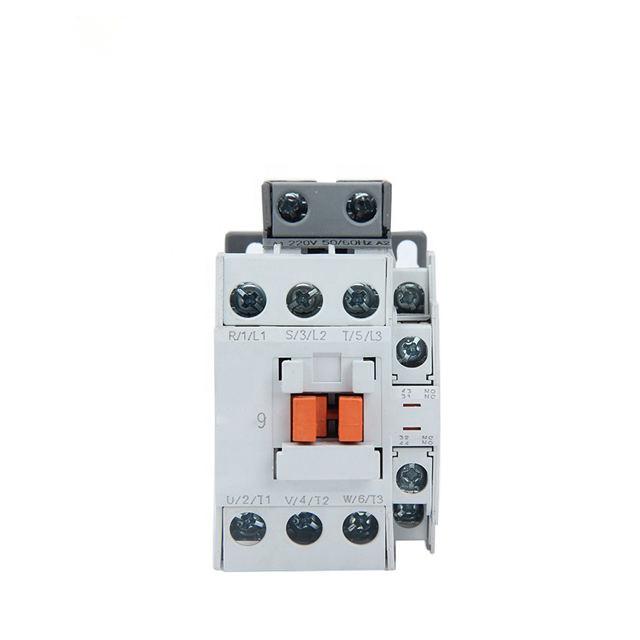

Motorized Breaker Contactor AC GC-18 Series 32 40 50 65 75 85 Silver Point

Name: Motorized Breaker Contactor AC GC18 Series 32 40 50 65 75 85 Silver Point
Brand: YOKG
Price: 1 USD

China Motorized Breaker Contactor AC GC-18 Series 32 40 50 65 75 85 Silver Point wholesale

Brand Name : YOKG

Model Number : GC-9

Certification : CE,TUV,CB

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T

Supply Ability : 100000pcs per Month

Delivery Time : 15days or Depends on ordering QTYS

Packaging Details : Each unit be packed in one individual inner box

Main Circuit Rating Voltage : 110V,230V,240V,380V

Rated Current : 9-95A

Standard : IEC60947-4

Number of Pole : 3

Frequency of coil : 50Hz,60Hz,50/60HZ

Phase : 3

Contact Now

Motorized Breaker AC GC-18 Series Contactor 32 40 50 65 75 85 Silver Point

Features:

♦ This GMC AC contactor with a clear dust cover for protection and more pretty

♦ Combined with the auxiliary contact block,timer delay and mechanical interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, stardelta starter

♦ With the thermal relay ,it combined into the electromagnetic starter

♦ Full set accessories

Applicable Working:

Ambient temperature	-5~+40℃, the average value cannot exceed to +35℃ within 24h
Altitude	≤2,000m
Relative humidity	≤95%
Pollution level	II
Installation location	Mount on the place where has no obvious vibration or impact

Main parameters and Technical Performance:

Type			GC-9	GC-12	GC-18	GC-22
Rated heating current (A)			25	25	40	40
Rated insulation voltage (V)			690
Rated impact withstand voltage (KV)			6
Rated making capacity			10le
Rated breaking capacity			8le
Poles			3
Auxiliary contact			1NC+1NO
Short-time withstand current(A)	10S		72	96	144	196
IEC-60947	AC1 Load		25	25	40	40
	AC3 Load power	200～240V	2.5KW	3.5KW	4.5KW	5.5KW
		380～440V	4KW	5.5KW	7.5KW	11KW
		500～550V	4KW	7.5KW	7.5KW	15KW
		690V	4KW	7.5KW	7.5KW	15KW
	AC3 Load current	200～240V	11A	13A	18A	22A
		380～440V	9A	12A	18A	22A
		500～550V	7A	12A	13A	18A
		690V	5A	9A	9A	32A
UL508	Continuous current		20A	25A	30A	32A
	single-phase machine	115V	0.5HP	0.5HP	1HP	2HP
	single-phase machine	230V	1HP	2HP	3HP	3HP
	Three-phase machine	200V	2HP	3HP	5HP	7.5HP
		230V	2HP	3HP	5HP	7.5HP
		460V	5HP	7.5HP	10HP	10HP
		575V	7.5HP	10HP	15HP	15HP
Operation frequency (times/h)	Electrical life		1200
Operation frequency (times/h)	Mechanical life		3600
AC-3 Electrical life (10000/times)			100	100	100	100
Mechanical life (10000/times)			1000	1000	1000	1000

Installation dimension:

Motorized Breaker Contactor AC GC-18 Series 32 40 50 65 75 85 Silver Point

Certificates:

Motorized Breaker Contactor AC GC-18 Series 32 40 50 65 75 85 Silver Point

FAQ:

1. Could I have prices of your products?

Well welcome. Please feel free to send us an inquiry. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, OEM and ODM are available

3. What's the lead time for regular order?

7-15 days for order quantity less than 2000pcs; For more quantity, we can negotiate about it.

4. Do you inspect the finished products?

Our products100% self-inspection and testing before packing

5. How about payment terms?

30% deposit, the rest payment balance against B/L copy .

6. What is the standard of package?

Export standard package or special package according to customer
