Product Description:

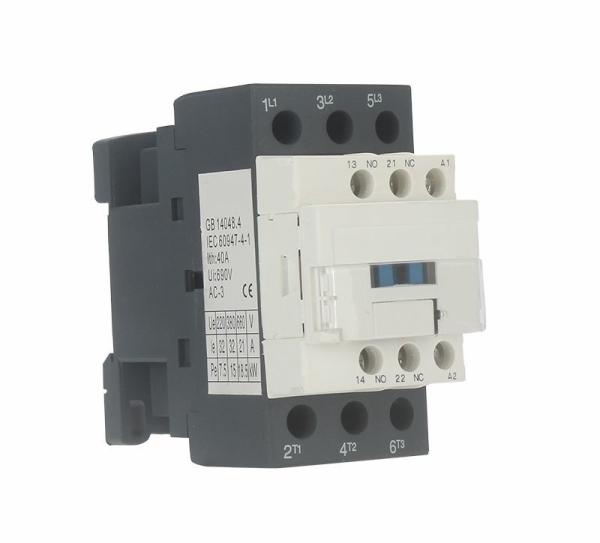

3 Pole AC Contactor
The 3 Pole AC Contactor is an AC magnetic contactor designed to IEC60947-4 standards. It is perfect for 3 phase applications, working at a power frequency of 50/60Hz, with a rated voltage of 220VAC. The rated operational voltage is also 220VAC, and it can be installed using either a screw or DIN RAIL method.
Features:
- Product Name: 3 Pole AC Contactor
- Installation Method: Screw OR DIN RAIL
- Number of Poles: 3
- Protection Level: IP20
- Rated Operational Voltage: 220VAC
- Mechanical Endurance: 3600/h
- Complied with Standard: IEC60947-4
- Type: AC Magnetic Contactor
- Contact Arrangement: 3P+NC+NO
Technical Parameters:
| Rated Current |
20A, 32A, 40A, 50A, 60A, 80A, 125A |
| Protection Level |
IP20 |
| Rated Operational Current |
60A |
| Rated Operational Voltage |
220VAC |
| Mechanical Endurance |
3600/h |
| Installation Method |
Screw OR DIN RAIL |
| Insulation Voltage |
690VAC |
| Number of Auxiliary Contacts |
3 |
| Number of Poles |
3 |
| Power Frequency |
50/60Hz |
| Model |
LC1D |
| Contacts |
1NO+1NC |
| Standard |
IEC60947-4-1 |
Applications:
YOKG or OEM 3 Pole AC Contactor is designed for IEC60947-4 standards and provides a reliable 3-phase electrical connection. It is widely used in a variety of applications such as industrial, commercial and residential. This contactor is available in rail or screw mounting options for easy and quick installation. Its protection level is up to IP20, and it can work up to 220VAC rated voltage with rated operational current of 60A. The rated current can be 20A, 32A, 40A, 50A, 60A, 80A, 125A. This contactor is reliable, durable and cost-effective. It is ideal for protecting electrical circuits and applications from overloads and short-circuits.
Customization:
3 Pole AC Contactor
Brand Name: YOKG or OEM
Model Number: SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95
Place of Origin: Zhejiang, China
Installation Method: Screw OR DIN RAIL
Rated Current: 20A, 32A, 40A, 50A, 60A, 80A, 125A
Number of Poles: 3
Rated Insulation Voltage: 690VAC
Protection Level: IP20
The 3 Pole AC Contactor is a IEC60947-4 compliant AC magnetic contactor, designed for 3 phase applications. It is equipped with reliable contact system and convenient operation. It is highly effective and efficient, providing users with reliable and stable performance.
FAQ:
Q1: What is a 3 Pole AC Contactor?
A1: A 3 Pole AC Contactor is an electrically operated switch used for controlling an AC circuit. It is manufactured by YOKG or OEM and available in different models such as SC1-09, SC1-12,SC1-18,SC1-25,SC1-32,SC1-40,SC1-50,SC1-65,SC1-80,SC1-95. It is made from high quality materials and produced in Zhejiang, China.Q2: What are the main features of a 3 Pole AC Contactor?
A2: The main features of a 3 Pole AC Contactor are its high durability, reliable performance, low power consumption, and easy installation. It is also designed with safety features such as overload protection and short-circuit protection.Q3: What is the voltage rating of a 3 Pole AC Contactor?
A3: The voltage rating of a 3 Pole AC Contactor varies depending on the model. Generally, the voltage ratings range from 24V to 440V.Q4: How is a 3 Pole AC Contactor used?
A4: A 3 Pole AC Contactor is used to control the current flow in an AC circuit. It can be used to switch on or off the power supply to the AC circuit.Q5: What are the benefits of using a 3 Pole AC Contactor?
A5: The benefits of using a 3 Pole AC Contactor include improved safety, increased reliability, reduced power consumption, and easy installation. It can also provide overload protection and short-circuit protection.
